Neodymium pot magnet with a bushing (SD series)
Neodymium pot magnet with a bushing has a protrudent female threaded bushing in the center. It can be used to connect the object with a bolt while the neodymium magnet side is fixed by the attraction force or attract the ferromagnetic object at the neodymium magnet side while the bushing side is fixed onto something with a bolt. ND series pot magnets can also be used as fishing magnets when combined with SC series – screw SC model and SD model together and the rope ties on the space between them.
FOB Price: US $0.1 – 10 / Piece | Get Latest Price
Min.Order Quantity: 100 Piece
Supply Ability: 5,000,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Delivery Time: About 7-25 days
Quick Details
| Place of Origin: Zhejiang, China (Mainland) | Brand Name: SYM |
| Product Name: Neodymium pot magnet with a bushing | Type: Permanent magnets |
| Components: Neodymium magnet, metal shell and threaded bushing | Coating: chrome, zinc or nickel plating |
| Rare Earth Magnet Material: Neodymium Iron Boron | Size: shown in the technical data chart below or customized |
| Accuracy: ±0.1mm | Magnetization Direction: through thickness direction |
| Application: Industrial magnets |
Technical Data for SD Series (Neodymium Pot Magnet with A Bushing)
-

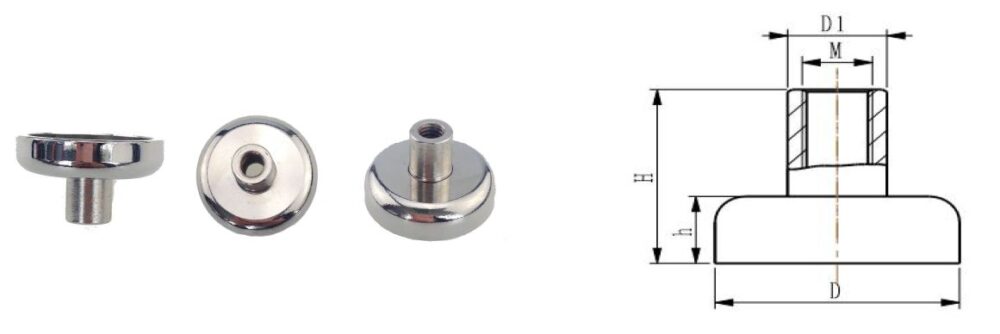

Metal shells made by stamping process
| Model | D (mm) | D1 (mm) | M (mm) | H (mm) | h (mm) | Attraction (Kgs) | Net Weight (gs) |
|---|---|---|---|---|---|---|---|
| NSD10 | 10 | 6 | M3 | 12.5 | 5 | 2 | 4 |
| NSD12 | 12 | 6 | M3 | 12.5 | 5 | 4 | 5 |
| NSD16 | 16 | 6.5 | M4 | 12.6 | 5 | 8 | 9 |
| NSD20 | 20 | 6.5 | M4 | 14 | 7 | 12 | 17 |
| NSD25 | 25 | 7.5 | M5 | 17 | 8 | 23 | 31 |
| NSD32 | 32 | 10 | M6 | 18 | 8 | 34 | 52 |
| NSD36 | 36 | 10 | M6 | 18 | 8 | 50 | 60 |
| NSD42 | 42 | 10 | M6 | 18 | 8.6 | 72 | 95 |
-

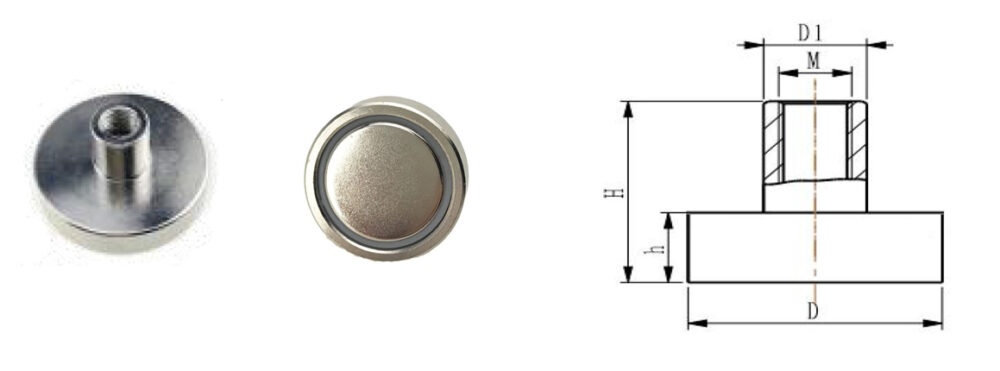

Metal shells made by machining process
| Model | D (mm) | D1 (mm) | M (mm) | H (mm) | h (mm) | Attraction (Kgs) | Net Weight (gs) |
|---|---|---|---|---|---|---|---|
| CSD48 | 48 | 12 | M8 | 24 | 11 | 81 | 160 |
| CSD60 | 60 | 12 | M8 | 28 | 15 | 160 | 340 |
| CSD75 | 75 | 17 | M10 | 35 | 18 | 250 | 635 |
Fishing Ropes for Magnet Fishing (when used as fishing magnets combined with SC series)
| Model | Rope OD (mm) | Rope Length (m) | Load-Bearing (kgs) |
|---|---|---|---|
| D4mm*10m | 4 | 10 | 150 |
| D4mm*20m | 4 | 20 | 150 |
| D6mm*10m | 6 | 10 | 260 |
| D6mm*20m | 6 | 20 | 260 |
| D6mm*30m | 6 | 30 | 260 |
| D8mm*10m | 8 | 10 | 360 |
| D8mm*20m | 8 | 20 | 360 |
| D8mm*30m | 8 | 30 | 360 |
Packaging for SD Series (Neodymium Pot Magnet with A Bushing)
Shipping Methods for SD Series (Neodymium Pot Magnet with A Bushing)
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
Pot Magnets & Magnetic Hooks Series
Pot Magnets Automation Assembly Video
Pot Magnets Pull Force Test Equipment
For more details about neodymium pot magnet with a bushing, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
