Neodymium pot magnets with eyelet style rings (SF series)
Eyelet style magnetic hooks, also referred to as neodymium magnets with eyebolts use neodymium magnets to attract on the flat surface and the eyelet style ring (eyebolt) to hang the object. It can also be used to salvage ferromagnetic metals under the water with a rope tied on the eyelet style ring (eyebolt), so it also has a very vivid name – Fishing Magnet.
FOB Price: US $0.1 – 10 / Piece | Get Latest Price
Min.Order Quantity: 100 Piece
Supply Ability: 5,000,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Delivery Time: About 7-25 days
Quick Details
| Place of Origin: Zhejiang, China (Mainland) | Brand Name: SYM |
| Product Name: Neodymium pot magnets with eyelet style rings | Type: Permanent magnets |
| Components: Neodymium magnet, metal shell and eyelet ring | Coating: chrome, zinc or nickel plating |
| Rare Earth Magnet Material: Neodymium Iron Boron | Size: shown in the technical data chart below or customized |
| Accuracy: ±0.1mm | Magnetization Direction: through thickness direction |
| Application: Industrial magnets |
Technical Data for SF Series (Neodymium Pot Magnets with Eyelet Style Rings)
-

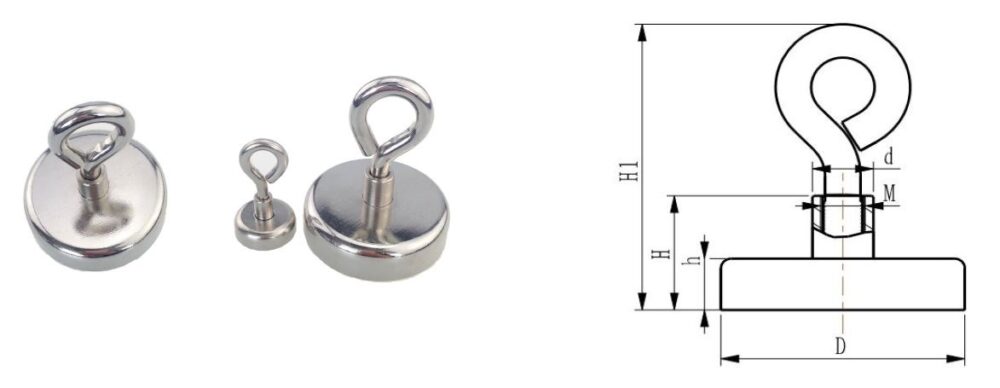

Metal shells made by stamping process
| Model | D (mm) | d (mm) | M (mm) | h (mm) | H (mm) | H1 (mm) | Attraction (Kgs) | Weight (gs) |
|---|---|---|---|---|---|---|---|---|
| NSF10 | 10 | 6 | M3 | 5 | 12.5 | 33 | 2 | 7 |
| NSF12 | 12 | 6 | M3 | 5 | 12.5 | 33 | 4 | 8 |
| NSF16 | 16 | 6.5 | M4 | 5 | 12.6 | 34.6 | 8 | 12 |
| NSF20 | 20 | 6.5 | M4 | 7 | 14 | 36 | 12 | 21 |
| NSF25 | 25 | 7.5 | M5 | 8 | 17 | 44.5 | 23 | 38 |
| NSF32 | 32 | 10 | M6 | 8 | 18 | 47.5 | 34 | 63 |
| NSF36 | 36 | 10 | M6 | 8 | 18 | 47.5 | 50 | 71 |
| NSF42 | 42 | 10 | M6 | 8.6 | 18 | 47.5 | 72 | 106 |
-

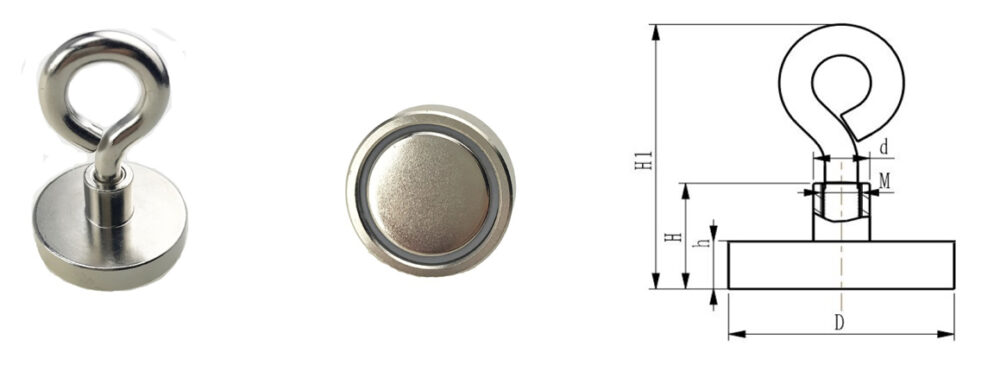

Metal shells made by machining process
| Model | D (mm) | d (mm) | M (mm) | h (mm) | H (mm) | H1 (mm) | Attraction (Kgs) | Weight (gs) |
|---|---|---|---|---|---|---|---|---|
| CSF48 | 48 | 12 | M8 | 11 | 24 | 60.5 | 81 | 187 |
| CSF60 | 60 | 12 | M8 | 15 | 28 | 64.5 | 160 | 367 |
| CSF75 | 75 | 17 | M10 | 18 | 35 | 91 | 270 | 697 |
Fishing Ropes for Magnet Fishing (when used as fishing magnets)
| Model | Rope OD (mm) | Rope Length (m) | Load-Bearing (kgs) |
|---|---|---|---|
| D4mm*10m | 4 | 10 | 150 |
| D4mm*20m | 4 | 20 | 150 |
| D6mm*10m | 6 | 10 | 260 |
| D6mm*20m | 6 | 20 | 260 |
| D6mm*30m | 6 | 30 | 260 |
| D8mm*10m | 8 | 10 | 360 |
| D8mm*20m | 8 | 20 | 360 |
| D8mm*30m | 8 | 30 | 360 |
Packaging for SF Series (Neodymium Pot Magnets with Eyelet Style Rings)
Shipping Methods for SF Series (Neodymium Pot Magnets with Eyelet Style Rings)
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
Pot Magnets & Magnetic Hooks Series
Pot Magnets Automation Assembly Video
Pot Magnets Pull Force Test Equipment
For more details about neodymium pot magnet with an eyelet style ring, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
