Neodymium magnetic swivel hooks (SG series)
Neodymium magnetic swivel or magnetic rotatable hook uses neodymium magnet to attract on the flat surface and the swivel hook to hang the object. Standard version is the shells plated with nickel.
FOB Price: US $0.1 – 10 / Piece | Get Latest Price
Min.Order Quantity: 100 Piece
Supply Ability: 5,000,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Delivery Time: About 7-25 days
Quick Details
| Place of Origin: Zhejiang, China (Mainland) | Brand Name: SYM |
| Product Name: Neodymium magnetic swivel hooks | Type: Permanent magnets |
| Components: Neodymium magnet, metal shell and swivel hook | Coating: chrome, zinc or nickel plating |
| Rare Earth Magnet Material: Neodymium Iron Boron | Size: shown in the technical data chart below or customized |
| Accuracy: ±0.1mm | Magnetization Direction: through thickness direction |
| Application: Industrial magnets |

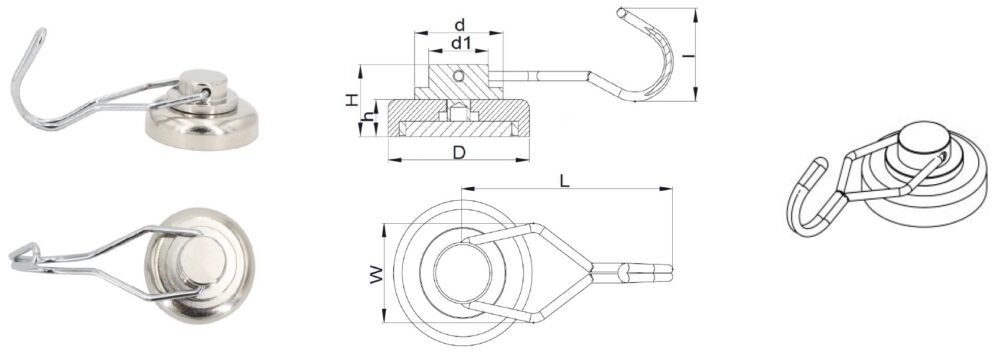

Technical Data for SG Series (Neodymium Magnetic Swivel Hooks)
| Model | D (mm) | d (mm) | d1 (mm) | h (mm) | H (mm) | L (mm) | W (mm) | I (mm) | Vertical Attraction (Kgs) | Side Attraction (Kgs) | Weight (gs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NSG25 | 25 | 20 | 13.5 | 8 | 15.5 | 53.5 | 23 | 24 | 17 | 3.5 | 38 |
| NSG32 | 32 | 20 | 13.5 | 8 | 15.5 | 53.5 | 23 | 24 | 30 | 5.5 | 52 |
| NSG36 | 36 | 20 | 13.5 | 8 | 15.5 | 53.5 | 23 | 24 | 40 | 6.5 | 65 |
| NSG42 | 42 | 20 | 13.5 | 8.6 | 16.1 | 53.5 | 23 | 24 | 60 | 8 | 92 |
Packaging for SG Series (Neodymium Magnetic Swivel Hooks)
Shipping Methods for SG Series (Neodymium Magnetic Swivel Hooks)
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
Pot Magnets & Magnetic Hooks Series
Pot Magnets Automation Assembly Video
Pot Magnets Pull Force Test Equipment
For more details about neodymium magnetic swivel hooks, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
