Neodymium magnetic climbing hooks (SL series)
Neodymium magnetic climbing hook or called magnetic carabiner uses a snap hook for convenient opening and closing to hang on the bag and uses neodymium magnet to attract the ferromagnetic object, such as a water bottle with metal bottle cap. You can also do the contrary way: the magnet attracts the ferrous metal in your bag and the water bottle is hung on the snap hook. Some people also use it as Fishing Magnet.
FOB Price: US $0.1 – 10 / Piece | Get Latest Price
Min.Order Quantity: 100 Piece
Supply Ability: 5,000,000 Piece/Month
Port: Shanghai/Hangzhou/Ningbo
Payment Terms: T/T, Western Union, Paypal
Delivery Time: About 7-25 days
Quick Details
| Place of Origin: Zhejiang, China (Mainland) | Brand Name: SYM |
| Product Name: Neodymium magnetic climbing hooks | Type: Permanent magnets |
| Components: NdFeB magnet, metal shell and carabiner | Coating: chrome, zinc or nickel plating |
| Rare Earth Magnet Material: Neodymium Iron Boron | Size: shown in the technical data chart below or customized |
| Accuracy: ±0.1mm | Magnetization Direction: through thickness direction |

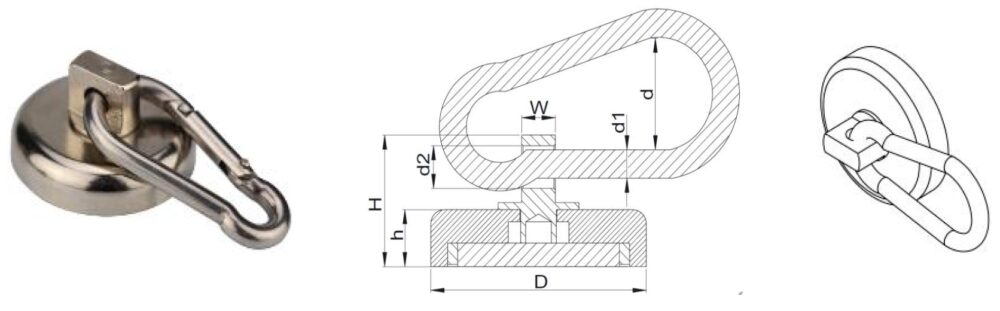

Technical Data for SL Series (Neodymium magnetic Climbing Hooks)
-
Metal shells made by stamping process
| Model | D (mm) | d (mm) | d1 (mm) | d2 (mm) | W (mm) | H (mm) | h (mm) | Attraction (Kgs) | Net weight (gs) |
|---|---|---|---|---|---|---|---|---|---|
| NSL25 | 25 | 12 | 4 | 6.5 | 5 | 18.5 | 8 | 17 | 30 |
| NSL32 | 32 | 12 | 4 | 6.5 | 5 | 18.5 | 8 | 28 | 47 |
| NSL36 | 36 | 15 | 5 | 6.5 | 5 | 18.5 | 8 | 35 | 59 |
Fishing Ropes for Magnet Fishing (when used as fishing magnets)
| Model | Rope OD (mm) | Rope Length (m) | Load-Bearing (kgs) |
|---|---|---|---|
| D4mm*10m | 4 | 10 | 150 |
| D4mm*20m | 4 | 20 | 150 |
| D6mm*10m | 6 | 10 | 260 |
| D6mm*20m | 6 | 20 | 260 |
| D6mm*30m | 6 | 30 | 260 |
| D8mm*10m | 8 | 10 | 360 |
| D8mm*20m | 8 | 20 | 360 |
| D8mm*30m | 8 | 30 | 360 |
Packaging for SL Series (Neodymium magnetic Climbing Hooks)
Shipping Methods for SL Series (Neodymium magnetic Climbing Hooks)
(TNT, DHL, FedEx, UPS, etc), Air, Sea.
a: If the weight is under 40kgs, we recommend to send it in shielding boxes by Express.
b: If the weight is between 40-100kgs, it can be sent by Express or Air.
c: If the weight is over 100kgs, we recommend to ship them by Sea.
Pot Magnets & Magnetic Hooks Series
Pot Magnets Automation Assembly Video
Pot Magnets Pull Force Test Equipment
For more details about neodymium magnetic climbing hooks, please send message to us or email to sales@sinnyuan.com. We will reply to you as early as possible.
