Magnetic Separator With Rotary Grate

Main Features:

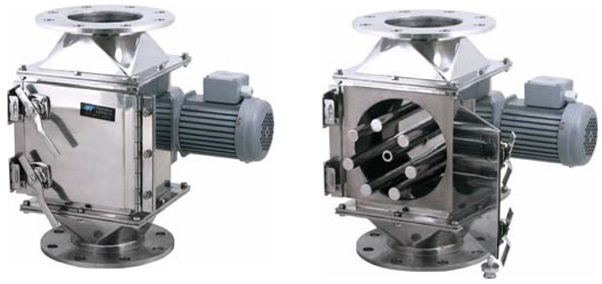

1. Quick detachable design for magnetic grate: easy disassembly, cleaning and reassembly.
2. The max magnetic strength can reach 12,000 Gs. Standard working temperature: ≤80℃. If needed, it can reach max 350℃.
3. The quantity of magnetic bars can be increased or reduced according to the application.
4. Square chute and round pipeline flange can be optional for different connections.
5. Rotating magnetic bars can prevent the material from caking or bridging.

Applications:
Suitable for removing iron scrap or micro ferromagnetic contamination from powdery or granule materials, especially from high viscosity or poor fluidity materials that is prone to caking or bridging, widely used for building materials, chemicals, coal, food, refractory, pharmacy, etc.
