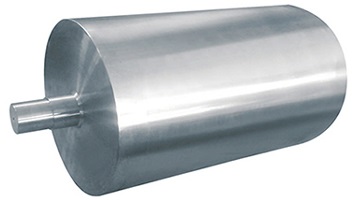

Magnetic Pulley

FOB Price: Get Latest Price

Min.Order Quantity: 1 Piece

Supply Ability: 100 Piece/Month

Port: Shanghai/Hangzhou/Ningbo

Payment Terms: T/T, Western Union, Paypal

Production Lead Time: About 30-50 days

Application:
Magnetic pulleys are placed at the head of conveyor belt to separate iron particle, iron scrap, tramp iron and other ferromagnetic objects from bulk dry material flow such as iron ore, grain, sand, gravel, plastics, wood, waste, cullet, rubber, etc.

Main Features:
1. The drum body can be made of cheaper ferrite magnets or powerful rare earth magnets. The max magnetic strength can be up to 15,000 Gs.
2. Housing material is 304 or 316L stainless steel which has good corrosion resistance performance.
3. No electric power required for generating magnetic field.
4. An automatic separation system can be formed when the pulley works together with the conveyor.
5. The two ends of the pulley can be custom designed in order to connect it with a motor.
6. Special requirement can be custom made.

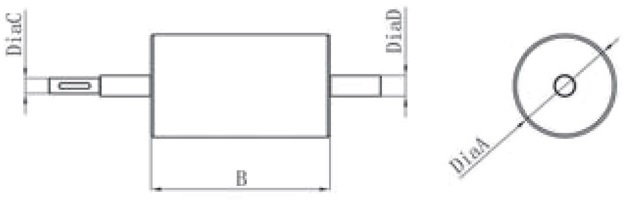

Magnetic Pulley Technical Data

MODEL NO	Dia A (mm)	B (mm)	Dia D (mm)	Dia C (mm)	Weight (KGS)
PMS2030	200	350	40	30	33
PMS2040	200	450	40	30	42
PMS2050	200	550	40	30	51
PMS2060	200	650	40	30	60
PMS2070	200	750	40	30	69
PMS2080	200	850	40	30	78
PMS2090	200	950	40	30	87
PMS20100	200	1050	40	30	96
PMS3030	300	350	50	40	74
PMS3040	300	450	50	40	95
PMS3050	300	550	50	40	116
PMS3060	300	650	50	40	137
PMS3070	300	750	50	40	158
PMS3080	300	850	50	40	179
PMS3090	300	950	50	40	200
PMS30100	300	1050	50	40	221
PMS4030	400	350	60	50	131
PMS4040	400	450	60	50	168
PMS4050	400	550	60	50	205
PMS4060	400	650	60	50	242
PMS4070	400	750	60	50	279
PMS4080	400	850	60	50	316
PMS4090	400	950	60	50	353
PMS40100	400	1050	60	50	390
